Welded wire mesh is welded with high-quality low-carbon steel wire and then passivated and plasticized by electro galvanized, hot dipped galvanized, PVC coated, etc. Achieve smooth surface, uniform mesh, firm solder joints, good local machining performance, stability, good weather resistance and good corrosion resistance.
Products Description

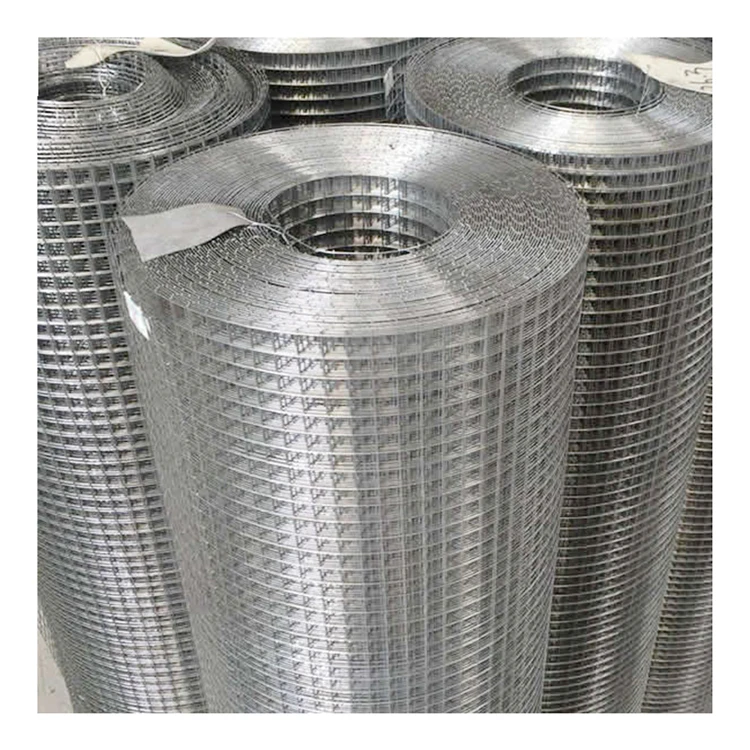

Galvanized Welded Wire Mesh
Welded Wire Mesh
Opening (In inch)
In metric unit(mm)
Wire Diameter(BWG)
1/4" x 1/4"
6.4mm x 6.4mm
22,23,24
3/8" x 3/8"
10.6mm x 10.6mm
19,20,21,22
1/2" x 1/2"
12.7mm x 12.7mm
16,17,18,19,20,21,22,23
5/8" x 5/8"
16mm x 16mm
18,19,20,21
3/4" x 3/4"
19.1mm x 19.1mm
16,17,18,19,20,21
1" x 1/2"
25.4mm x 12.7mm
16,17,18,19,20,21
1-1/2" x 1-1/2"
38mm x 38mm
14,15,16,17,18,19
1" x 2"
25.4mm x 50.8mm
14,15,16
2" x 2"
50.8mm x 50.8mm
12,13,14,15,16
Technical Note:
1.Standard roll length: 30m,100m;width: 0.5m to 2.5m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request.
